Black Holes: by Alex Nervosa

What is a black hole and how is it defined?
Theory of black holes
Formation of black holes
Observations on black holes
Arguments for black holes
Other alternatives…
Relativistic behaviour of black holes
Black holes as power sources
Hawking radiation

Dark matter & the importance of black holes in physics and astronomy
Conclusion
References
Image Credits

Back to High Mass Stellar Evolution.



What is a black hole and how is it defined?

A black hole is a massive astrophysical object with infinite density that exerts such a strong gravitational force that nothing from within its radius can escape, not even light’ (Weisstein 2004). This General Relativistic definition was defined following the postulation of the General Theory of Relativity by Albert Einstein in 1915. The term ‘black hole’ was coined in 1968 by physicist John Wheeler and has since been widely accepted as a description of these peculiar astrophysical objects (Thinkquest 1999).

The existence of mass concentration in ‘dark stars’ however, where their gravitational force was such that light couldn’t escape from them, was first postulated in the late 18th century by Reverend John Mitchell and subsequently in the very late 18th century by Pierre-Simon Laplace (Bunn 1995, Thinkquest 1999). Both Mitchell and Laplace arrived at the same conclusion using Newton’s theory of gravitation using the notion that light behaved as a particle.

Back to Top | Back to High Mass Stellar Evolution

Theory of black holes

The General Relativity describes a set of field equations that describe the properties and behavior of gravity surrounding a given mass. In other words the field equations describe how an object curves space-time and how the curvature in turn, alters mass in three dimensional space (Smarr 1995)

The first person to apply General Relativity’s field equations in relation to stellar objects was German physicist Karl Schwarzschild in the year 1916. Using Einstein’s field equations, Schwarzschild found for a mass concentrated inside a critical radius, which is defined as the distance from the centre of the mass, no object within this radius can pass to the outside, not even light. This definition is known as the Schwarzschild radius (Freedman & Kaufmann 2002), and is also the definition of the critical radius referred to earlier in the introduction.

The calculation of the Schwarzschild radius has only a single variable that affects it, which is the object’s mass (Hamilton 1999). This was an important first step in providing a quantitative description of a black hole. It was important also in implicitly defining another structural property of a black hole called the ‘event horizon’.

The event horizon is a region surrounding a black hole where light cannot escape, yet cannot be drawn inside the black hole. The event horizon is located at the Schwarzschild radial distance from the centre of a black hole. Light rays at the event horizon trace a circular path around a black hole. As a consequence the event horizon forms a ‘virtual’ surface around a black hole which is governed by the length of the Schwarzschild radius. The event horizon and the Schwarzschild radius together mark the virtual boundary of no return for objects that come within this area of a black hole.

The structural properties of a black hole, as described by the Schwarzschild radius and the event horizon were further extended in 1965 by Roger Penrose, who proved the Singularity Theorem (Weisstein 2004). Penrose, a professor in mathematics, was able to derive this theorem by using, at the time, a new mathematical tool which hadn’t previously been used in general relativistic calculations, called Topology (Thorne 1994).

The singularity theorem states that inside every black hole, there is a point or location of infinite density called a singularity. Any object which moves within the Schwarzschild radius is inexorably drawn towards the singularity until it is ultimately destroyed.

A singularity is a point or place of infinite density. It can either be located at the centre of a non-spinning black hole as a point of infinite density or around the centre of a spinning black hole as an infinitely thin ring. The characteristics of the singularity depend on characteristics inherited by a black hole during formation, such as whether it has angular momentum or not.

These characteristics also affect the structure of a black hole such as the length of the Schwarzschild radius which is the distance of the event horizon from the singularity (Freedman & Kauffman 2002). The characteristics are simply: Mass, angular momentum and electric charge (Gundlach 1999). They form the essence of the No Hair Theorem of black holes postulated by John Wheeler in 1967 (Novikov 1990). The implications of the No Hair theorem are that only mass, angular momentum and electric charge are required to completely describe a black hole.

During black hole formation, attributes which are spherical protrusions of a stellar object are gravitationally radiated away, for instance the magnetic field. This behaviour described as ‘gravitating away’ characteristics during black hole formation was postulated by Richard Price in Price’s theorem in the year 1970 as described by Weisstein (2004).

Price’s theorem explains why certain information about a stellar object is lost during black hole formation and also helps to understand why so few characteristics described by the No Hair Theorem, namely mass, angular momentum and electric charge are required to completely describe and determine the structure of a black hole. Characteristics and structural properties of a black hole although very few, can be combined and described in the following solutions to General Relativity’s field equations (Schwarzschild, Reissner-Nordstrom, Kerr and Kerr-Newman), as follows:

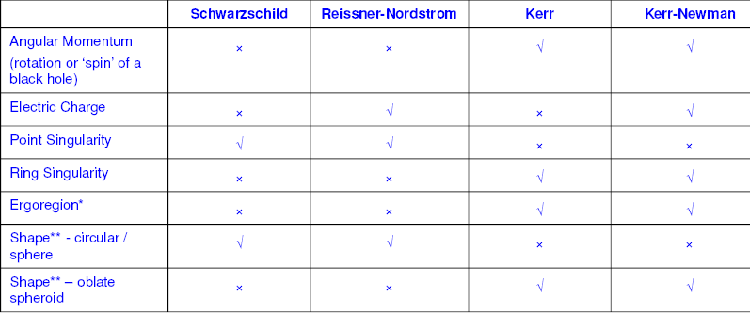

Table 1: Properties of black holes
Points to note:

  • The ergoregion is a region of space-time located outside the event horizon of a rotating black hole where no object even if traveling at the speed of light, can remain stationary. Unlike the event horizon, the ergoregion is a physical concept. It is bounded between a ‘static limit’ which is the outer rim of the ergoregion and the event horizon (see Figure 1) which also marks the inner rim of the ergoregion. An object can enter and exit the ergosphere from the static limit, however once the static limit is entered an object will start to be drawn towards the black hole.
  • The ergoregion* and shape** of a black hole are attributes derived by existence of or absence of angular momentum i.e. Schwarzschild and Reissner-Nordstron black holes are circular and don’t have an ergoregion, whilst Kerr and Kerr-Newman black holes are oblate spheroids and have an ergoregion. Angular momentum also defines whether or not a point singularity (for a non rotating black hole) or ring singularity (for a rotating black hole) exists.

Figure 1: Kerr-Newman Black Hole:

The Kerr-Newman black hole shown on the left is characteristic of structure and properties attributed to a spinning  black hole.

The entire mass of a black hole is located in the singularity (shown as a black ‘ring’ in Figure 1).

The single most important characteristic of a black hole responsible for governing everything about its’ formation, structure and evolvement, is its mass; More specifically, the inherited mass of the compact object before black hole formation for example, a collapsing star under its own self gravity.

There is however, a theoretical mass limit called the ‘Chandrasekhar limit’ (Darling 2003) that defines the maximum mass a degenerate (Hyperphysics 2004) compact stellar object may have. The Chandrasekhar limit for nuclear degeneracy, after which black hole formation may be possible has been calculated at approximately 3 solar masses (ThinkQuest 1999, Freedman & Kaufmann 2002).

If the Chandrasekhar limit is exceeded, the stellar object’s degenerate nuclear pressure which normally acts to stop further compression under self gravity will not be able to halt its own self-implosion. At this point, General Relativity effects become prevalent as gravity begins to dominate over the degenerate pressure, forcing a black hole to form.

Back to Top | Back to High Mass Stellar Evolution

Formation of black holes

There are a number of ways in which a black hole can form: Collapse of a compact stellar remnant, accretion of matter in a compact stellar remnant, merger of compact stellar remnants and gravitational collapse of dense regions of matter in the Universe responsible for super massive black hole formation.

Figure 2: Stellar Collapse:
The collapse of stellar remnants, also known as ‘core collapse’ after a supernova explosion (Figure 2), occurs when the Chandrasekhar limit for nuclear degeneracy is exceeded for a massive stellar object of more than 20 solar masses (Fryer 1999). The implication of this are that, only large massive stellar objects are capable of forming stellar black holes after their degenerate core collapses.

There are however, other ways in which black holes may form even when stellar masses are less than 20 solar masses. It can occur in accretion of matter around degenerate compact stellar remnants such as white dwarfs or neutron stars that typically have a degenerate mass less than the Chandrasekhar limit (Freedman & Kaufmann 2002).

Figure 3: Accretion in a Binary System:
If for instance, a white dwarf or neutron star exists in a binary system with a stellar companion such as a stellar giant or supergiant, matter lost from the companion star, either ejected via strong stellar winds or ejected from the companion star via inner Lagrangian overflow of its Roche lobe (Audley 1998) as depicted in Figure 3, can accrete either on a white dwarf or neutron star, to the point where the Chandrasekhar limit is exceeded, causing General Relativity effects to take over, resulting in black hole formation.

Figure 4: Merger of Compact Stellar Remnants:

The merger of compact stellar remnants, for example a binary system composed of two neutron stars orbiting each other, each creating their own spacetime curvature as shown in Figure 4, is another possible path to black hole formation. If the two neutron stars merged as a result of orbit in-spiralling due to General Relativistic effects associated with gravitational wave emission (Seidel 1995), the combined mass which will result from the merger will exceed the Chandrasekhar limit. At this point black hole formation will take place.

Figure 5: Super Massive Black Holes:

To date, galactic centers observed to have bulges, appear to host super massive black holes. These super massive black holes are very large and are of the order of up to billions of solar masses (Britt 2003). One of the most prevalent theories used to explain super massive black hole formation cites gravitational collapse during early galactic formation in the dense centre of galaxies. It is thought that super massive black hole formation at the centre of galaxies is responsible for influencing galactic evolution and galactic structure (Kormendy & Shields 2000). Figure 5 shows Hubble space telescope images taken in visible and near-infrared frequencies of active galactic centers thought to be the location of super massive black holes.

There are other potential ways in which black holes may or may have formed: It is theorized that ‘primordial’ black holes may have formed in the early Universe where the density contrast was high enough to allow matter to coalesce under its own self gravity (Boudoul & Barrau 2002).

As a consequence primordial black holes could be of various masses, depending on the magnitude and variance of the density contrast of early regions of the Universe where formation of these primordial black holes may have taken place. To date, no primordial black holes have been observed,
although it may be possible to detect these via thermodynamical effects occurring outside their event horizon (Rankin 1995) if ever these effects could be measured.

It is theorised also, that ‘quantum’ black holes can form however, it is suggested that these may only exist in higher dimensions that we cannot readily observe (Kaku 1998). Quantum black holes would appear to be infinitesimally small with a Schwarzschild radius approximately that of an atomic nucleus (Rabinowitz 1999). It has been suggested by Giddings (2001) and Thomas and Giddings (2002), that these quantum black holes could possibly be created in the next generation of high energy particle accelerators currently being developed in Europe.

Back to Top | Back to High Mass Stellar Evolution

Observations on black holes

Although there are various theories on formation of black holes from an observational perspective, there are only two classifications astronomers make for them based on mass, which are stellar and super massive black holes.

Stellar black holes generally have a mass above 20 solar masses, however, it is not uncommon for them to possess as low as 3 solar masses (Freedman & Kaufmann 2002). Stellar black holes which have between 100 and 500 solar masses, usually called ‘mid-mass’ black holes have also been found, however these are less common than their less massive counter parts (Fazekas 2004).

Figure 6: Halo Black Hole Candidate:

Stellar black holes are likely to be found in many places of the observable Universe. Galactic halos for instance can host ‘halo’ black holes, which are usually found as individual stellar black holes as described by Phillips (2000) with the discovery of MACHO-96-BLG-5 black hole candidate as an example shown in Figure 6.

More commonly, stellar black holes may be found as part of X-ray binary systems either in globular clusters or in the vicinity of galactic centers or galactic spiral arms, where they are accompanied by their respective stellar companion for example a stellar giant or low mass main sequence star.

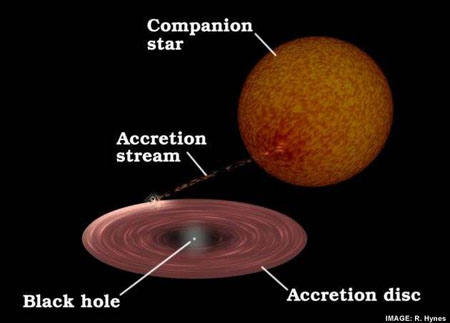

Figure 7: X-ray Binary system:

V404 Cygni in the constellation Cygnus is an example of an X-ray binary system containing a black hole accompanied by a K0 III stellar giant (Mendez 2003). An artist’s impression in Figure 7 depicts V404 Cygni siphoning off matter from its companion star onto its accretion disk thus emitting X-rays from matter outside the event horizon.

Stellar X-ray binary system black holes are interesting astronomical objects as the accretion disk and the orbiting companion as depicted in Figure 7 can be used to determine structural and associated black hole characteristics.



With careful observations of X-ray binary systems, important information such as mass, angular momentum, semi-major axis and orbital period of a stellar black hole can be inferred.

Masses of stellar black holes are arguably the most important characteristic that may be indirectly inferred. When mass is inferred, distinctions can be made between stellar black holes and other potential compact stellar remnant candidates such as neutron stars and white dwarfs, both of which may be found in X-ray binary systems also. Observations of mass and other characteristics of stellar black holes found in the galactic halo, or halo black holes, are more difficult to make as they don’t have an orbiting companion that can assist in determining their inferred properties.

Some indirect observational methods and techniques used for stellar black holes are:

  1. Spectral analysis of a black hole’s X-ray accretion disk. This can be used to infer a black hole’s mass as the luminosity associated with the inner accretion disk around a black hole is related to the mass of the black hole (Fazekas 2004). Also analysis of X-ray emission from the disk’s iron atoms can indicate how rapidly or otherwise a black hole is spinning (Watzke 2003).
  2. Usage of Kepler’s 3rd law and Newton’s form of Kepler’s third law combined with CCD photometry, spectroscopic, Doppler, radial velocity and light curve analysis of accretion disks and/or companion stars in X-ray binary systems. These techniques combined in various forms can determine a stellar black hole’s mass, rotational period and semi-major axis (Freedman & Kaufmann 2002).
  3. Measuring spectroscopic gravitational red shift in an X-ray binary system. This can be used to infer the mass of a stellar black hole and draw distinctions between types of X-ray binary systems i.e. those which contain stellar black holes and those that do not (Reynolds & Nowak 2003).
  4. Resonances between Quasi Periodic Oscillations (QPOs) and orbital/circular motions of accreting matter in an X-ray accreting disk, can be used to determine the angular momentum of a stellar black hole (Abramowicz & Kluzniak 2001).
  5. Gravitational micro lensing of halo black holes can be used to determine their mass, which is inferred as a result of the duration of the lensing event detected. This event is the time duration of the apparent brightness usually detected by orbiting or Earth based telescopes (Phillips 2000).

Uncertainties associated with stellar black hole measurements can be a problem. Mass uncertainties for high mass X-ray binaries which are black holes accompanied by a high mass stellar companion, are higher than those for low mass X-ray binaries which are for black holes accompanied by a low mass stellar companion, as described by Hughes (1999) and Silber (1999). The gravitation field in a high mass X-ray binary system resulting from a black hole’s orbiting companion will be greater, thus affecting the accuracy of spectroscopic measurements obtained of a stellar black hole’s accretion disk.

Gravitational lensing techniques are not entirely accurate. Halo black hole masses therefore have a high level of uncertainty as describe by Hughes and Holz (2003). One of the reasons is that there are uncertainties in deriving and determining lensing parameters used to obtain results however, as described by Han (1997), work in this area is continuing to improve the accuracy of lensing measurements.

A super massive black hole’s mass and angular momentum can be inferred using the same methods and techniques described for stellar X-ray binary systems, as super massive black holes and stellar X-ray binary system black holes share the same characteristics e.g. orbiting companions such as other stars and gas clouds as well as accreting disks outside their event horizon. Super massive black holes are located in the centre of bulging galaxies and have been found to contain masses in the order of millions to billions of solar masses (Lochner 2004).

The closest example of a super massive black hole is Sagittarius A* (abbreviated to Sgr A*) which is located at the centre of our Milky Way galaxy (Weinstock 2000). There have been several observations conducted of Sgr A* over a variety of wavelengths to attempt to confirm its status as a super massive black hole, as well as to determine it characteristics and attributes such as mass and angular momentum.

Sgr A* has been found to emit electromagnetic radiation primarily in the radio frequency region and also more recently, as observed by the Chandra X-Ray observatory in the X-ray region (Tucker 2000). These observations along with infrared imaging performed by the Hubble space telescope have enabled according to Watson (2001), astronomers to detect the following insofar as Sgr A*:

  1. Doppler shifts of surrounding gas clouds
  2. Doppler shifts of surrounding stellar objects
  3. The proper motion of surrounding stars, over time
  4. The mass distribution around the central region of our galaxy

The Hubble telescope image shown in Figure 8 of Sgr A* indicated by yellow arrows shows stars surrounding Sgr A*, most of which have had their Doppler shifts and proper motion measured using some of the observation described above. Although not shown in this picture, the majority of stars depicted have been observed to be orbiting either clockwise or anticlockwise around Sgr A*. Results of the above observations described by Watson (2001) constrained mass and associated properties of Sgr A*’s and have verified its status as a super massive black hole (Ghez et. al. 2003).

Figure 8: Sgr A* and Orbiting Stars:

More recent results by Falcke (2004) and his team of astronomers, using very long baseline interferometry (VLBI) (Goebel et. al 2004) have determined precisely the size of Sgr A* by using high frequency VLBI techniques in the radio frequency spectrum better known as millimeter VLBI. Millimeter VLBI is optimal for piercing through the intervening interstellar dust found towards the centre of our galaxy. Falcke and his team found the size of Sgr A* to be 2 astronomical units in diameter which is equivalent to the diameter of the Earth’s orbit around the Sun.

Back to Top | Back to High Mass Stellar Evolution

Arguments for black holes

Arguments for black holes, other than those based on the fact that they don’t inherently emit any light, can be made based on inferred mass observations of potential black hole candidates. As described earlier, the Chandrasekhar limit for nuclear degeneracy is around 3 solar masses. Suspect black holes where the inferred mass is greater than this limit may be described as a black hole candidate.

Supportive arguments in addition to those around a greater-than Chandrasekhar limit can also be made based on gravitationally red shifted spectrum from the accretion
disk in an X-ray binary system. A black hole candidate for instance will exert more gravitational force, hence gravitational red shift on light emitted from its accretion disk. The spectrum detected will show specific features not found from spectra of other compact stellar objects such as quark, neutron stars and white dwarfs, such as the “broad iron K-line” effect (Reynolds 1997, Britt 2002).

Additional arguments for black holes can also be made based on the absence of Type I X-ray bursts from black holes which are commonly found in neutron stars as a consequence of thermonuclear explosions on their surface crust. The absence of Type I X-ray bursts may therefore serve as indirect confirmation of the existence of the event horizon, thus inferring the existence of black hole (Narayan 2002).

Back to Top | Back to High Mass Stellar Evolution

Other alternatives…

There are other more recent theoretical solutions to Einstein’s General Relativity field equations that may be used as alternatives that may explain the behavior of low mass stellar black holes. “Q-stars” are one of those, also known as ‘strange’ or ‘quark’ stars as described by (Miller Shahbaz Nolan 1998; Gondek-Rosinska Kluzniak Stergioulas 2002). Q-stars are another class of compact stellar objects with a mass above the Chandrasekhar limit for nuclear density, up to 10 solar masses (Abramowicz Kluzniak & Lasota 2002).

Another theoretical solution to Einstein’s General Relativity field equations are gravitational vacuum stars also known as “gravastars” (Visser & Wiltshire 2004). Gravastars are condensations of atomic matter at extremely low temperatures which are enveloped in a thick membrane akin to a surface crust (Britt 2002). A gravastar’s structure is different to a black hole, as no event horizon or singularity exists however it would be difficult to distinguish a gravastar from a black hole as its’ membrane would be at a distance from its’ centre just greater than the Schwarzschild radius, hence having similar dimensions to a black hole. A gravastar’s behavior would be indistinguishable to a black hole insofar as space-time warping effects and in having an accretion disk in stellar X-ray binary system (Mazur & Mottola 2001, Abramowicz Kluzniak & Lasota 2002). To date, no direct or indirect observations have been made of Q-stars or gravastars.

Back to Top | Back to High Mass Stellar Evolution

Relativistic behavior of black holes

Black holes as a result of their strong gravitational force are able to accelerate particles such as protons and electrons to relativistic speeds (speeds approaching the speed of light) outside their event horizon (Grenier & Laurent 2001).

This behavior is observed in stellar X-ray binary black holes and super massive black holes both which are depicted in Figure 9. An example already familiar is that of X-ray emission from an accretion disk outside a black hole’s event horizon. Electrons and protons spiraling towards a black hole in an accretion disk are accelerated to relativistic speeds resulting from conservation of angular momentum as they approach the event horizon. Friction results between the particles, which produce high energy X-rays from the accretion disk (Hughes 1999).

A notable difference between the accreting disk of a super massive black hole and a stellar X-ray binary black hole is the larger disk size of super massive black hole described by Daunt & Yost (2001) also depicted in Figure 9. X-ray emissions generally occur in bursts resulting from fluctuations in accretion volumes of matter outside the event horizon. This effect is observed in Soft X-Ray Transients (SXT’s for short) which are a type of stellar X-ray binary system described by Narayan (2002). The already familiar V404 Cygni is an example of an SXT.

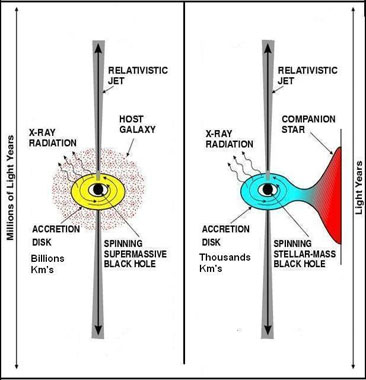

Figure 9: Accretion Disks and Relativistic Jets:

Detection of X-ray fluctuations can be detected by CCD X-ray cameras and transmission grating X-ray spectrometry via orbiting X-ray detection satellites such as NASA’s Chandra X-ray observatory and Japan’ ASCA X-ray detection satellite (Bradt et al 2001).

Relativistic behavior of black holes is also observed from emission of relativistic jets resulting from synchrotron radiation outside a black hole’s event horizon as depicted in Figure 9. These collimated jets of synchrotron radiation result primarily from plasma composed of protons, electrons and positrons. The end points of each jet are characterized by radio frequency emission. Stellar X-ray binaries which have black holes and radio emissions resulting from relativistic jets are sometimes referred to as to as microquasars or radio-jet X-ray binaries (Farlex Inc. 2004) to distinguish them from other stellar X-ray binaries. Jets emitted from microquasars span over a distance of light years as shown in Figure 9.

Super massive black holes also exhibit the same characteristics as microquasars, however they have jets which span over millions of light years as depicted in Figure 9. Microquasars are extremely useful in comparative studies of quasars which harbor super massive black holes that possess the same relativistic behavior as microquasars. These studies allows structural comparisons between both to be performed and behavioral predictions of quasars to be made such as their relativistic behavior, given that time events in microquasars occur over much shorter time scale than for quasars e.g. days instead of centuries (Mirabel 2002).

Back to Top | Back to High Mass Stellar Evolution

Black holes as power sources

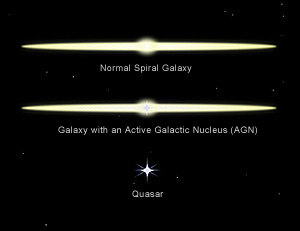

Figure 10: Quasars Are Found In AGN’s:

AGN’s Super massive black holes have varying power producing abilities governed by:
  1. 1. Their inherent mass and
  2. The amount of matter available around them typically drawn on their accretion disks (Lochner 2003).

Quasars, which are the most intense sources of energy know in the Universe, harbor at their core super massive black holes (SDSS 2002). Active galactic nuclei (AGN’s for short), which form part of the core of bulging ‘active galaxies’ (depicted as the second object from the top in Figure 10), harbour super massive black holes responsible for their power source also.

The first object from the top in Figure 10 shows another type of bulging galaxy labeled ‘normal spiral galaxy’ which also harbors a super massive black hole. These ‘Normal spiral galaxies’ better known as ‘radio galaxies’ have a relatively less energetic galactic nucleus, as a consequence of less energy produced by their respective super massive black hole also located at their centre (Weiss 2004).

Back to Top | Back to High Mass Stellar Evolution

Hawking radiation

Arguably the most peculiar behavior that a black hole possesses is its ability to radiate energy and through this process lose mass in a process called ‘Hawking radiation’, named after the contemporary theoretical astrophysicist Stephen Hawking (Hamilton 1998).

To understand how Hawking radiation works, one needs to consider that, what we describe as the ‘vacuum’ of space is in fact not a vacuum at all. The Heisenberg uncertainty principle (Freedman & Kaufmann 2002) being one of the key tenets of quantum physics allows for the existence of virtual particles in the vacuum of space. These virtual particles are extremely short lived. They cannot be detected. They annihilate each other in pairs as soon as they are created given each has opposite electric charges. What we observe though is the end result of their annihilation, such as ‘real’ particles created for example photons, electrons and positrons.

In the vicinity of the event horizon, it is possible that the extremely strong gravitational force induced on virtual particle pairs is able to draw one of the particles with negative energy from the pair inside the event horizon, thus, forsaking it forever (see left part of figure 11). As a consequence the remaining positive energy virtual particle has no choice but to become a real particle. It must do so in order not to violate the Heisenberg uncertainty principle. However it cannot do so without its partner.

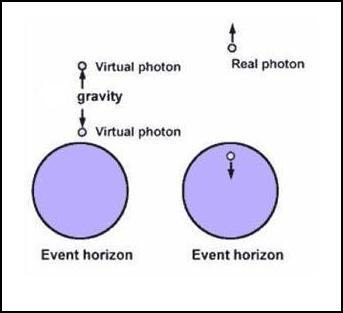

Figure 11: Virtual Particles:

In order then, for the orphaned virtual particle to become a real particle some of the energy of the black hole’s gravity must be converted to matter.

This apparent loss of gravitational energy is equivalent to mass being lost from inside the black hole. Mass lost from inside a black hole can also be described in terms of ‘quantum tunneling effects’ described by Lochner (2003). The end result is that: 1) energy is radiated away outside the black hole’s event horizon and 2) Although it appears that energy is ‘lost’ from conversion of mass into gravitational energy, the net effect is that energy is conserved as the gain in ‘positive’ energy emitted outside the event horizon is equally compensated by the gain of ‘negative’ energy by the black hole.

The implication of this for black holes is that they thermally radiate over a range of wavelengths in a similar way to ordinary stars i.e. temperature is associated with black holes.

Hawking’s radiation theory of black holes also finds that the energy lost from a black hole is inversely proportional to its mass. Larger mass black holes have low temperatures and therefore don’t radiate much energy. They also radiate at low frequencies e.g. radio or microwave frequencies. Smaller mass black holes emit more energy, hence have higher temperatures and higher frequency for their energy emission e.g. X-rays and gamma rays (Thinkquest 2000) are produced. Finally, the subsequent implication of the inverse thermal/mass relationship is that black holes will suffer from thermal radiation runaway effects as their mass gets smaller towards the end of their life, meaning that they will lose mass faster, the smaller they become.

Hawking radiation has implications for the existence or lack thereof of primordial quantum black holes. If primordial quantum black holes existed early in the history of the Universe it is very likely that some of these, being extremely small, would have radiated away (Schomberg 2002) via Hawking radiation.

Mass loss, hence energy loss due to Hawking radiation, which in turn raises a black hole’s temperature, occurs very, very slowly over a long period of time. It would take 1E+60 years for a black hole of 5 solar masses or 1E+80 years for a super massive black hole of 5 million solar masses as an example, to evaporate via Hawking radiation (Freedman & Kaufmann 2002). This greatly exceeds the estimated age of the Universe, which is currently estimated to be 1.5E+10 years.

It is important to note that the ratio of Hawking radiation luminosity emitted, versus a black hole’s disk accretion luminosity, over the course of its life, is extremely small even after taking into consideration that both Hawking radiation luminosity and disk accretion luminosities change over the lifetime of a black hole (Graham 2003; Thinkquest 2000; Sekmen 2003).

Back to Top | Back to High Mass Stellar Evolution

Dark matter & the importance of black holes in physics and astronomy

One of the most baffling mysteries in modern astronomy is that 80% to 90% of matter in the observable Universe required to explain its composition and structure is ‘dark’ matter which is unseen and unaccounted for i.e. it is missing (Smith 1999).

There are a number of theories that individually attempt to account for dark matter, detailed by Russell & Halls (1999), which include the existence of black holes and red dwarfs1 or tau neutrinos2 amongst many others. However Russell & Halls as well as Delehunty (2004) conclude that these theories alone or collectively, cannot all account for this missing matter. This view is shared by a number of astronomers and astrophysicists hence the hunt currently continues to understand what dark matter is.

Consequentially, black holes are just one possibility that may account for some of the dark matter of the Universe and not the only one. Primordial black holes are one possibility which may account for dark matter, as conditions in the early Universe being far more dense than today, would have favored gravitational collapse of entire regions of space-time potentially creating primordial black holes of varying masses (Boudoul & Barrau 2002).

Another black hole candidate that may contribute to dark matter is the ‘halo’ black hole described earlier. There may be many, many more halo black holes in the Universe than we can currently account for (Martin 1996) as they are difficult to observe indirectly given gravitational lensing techniques currently best suited for their observation, are still being perfected (Han 1997).

Black hole research is extremely important for physics and astronomy as it serves to validate General Relativity postulates as well as contribute to the formulation of the Theory of Quantum Gravity which provides a link between Quantum Physics and General Relativity being one of the main goal of modern physics and astronomy.

Further research into black holes will assist also to understand the extent that they play in dark matter which is also one of the most important goals of modern astronomy.

______________________________________________________________________________________________

1 Black holes and red dwarfs belong to the MACHO (MAssive Compact Halo Object) class of objects, which are localized to the Galactic Halo

2 Tau neutrinos belong to the WIMP (Weakly Interacting Massive Particles) class of objects which are particles that don’t interact with baryonic matter (baryonic matter includes particles such as protons and neutrons)

______________________________________________________________________________________________

Back to Top | Back to High Mass Stellar Evolution

Conclusion

Black holes are compact massive objects with infinite density that have the ability to warp the space-time curvature and in doing so ensure that nothing, not even light can escape from them. Their structure although having only a few attributes, allows various characteristics to be associated with them such as spin and electric charge. They can be categorized by mass as either stellar or super massive black holes and they form under a variety of circumstances generally associated with gravitational attraction or gravitational collapse of matter.

The indirect observational techniques used for stellar and super massive black holes are generally the same. Although there are uncertainties in observational results there is enough evidence to support the presence of black holes over other compact stellar remnants, however there are also other alternatives to black holes as described by more recent solutions to General Relativity field equations that deserve consideration.

Black holes exhibit relativistic behavior; Examples covered were X-ray emission from accretion disks and relativistic jets, which are features also found at the heart of quasars and active galactic nuclei (AGN) where super massive black holes play a major role as ‘power sources’ to these phenomena. Black holes have a theoretical finite lifetime resulting from Hawking radiation that associates a thermal temperature and mass evaporation effect to these intriguing objects. We have also seen how black holes contribute to the unseen dark matter in our Universe and the importance that the theoretical and observational work around them plays in modern physics and astronomy.

Back to Top | Back to High Mass Stellar Evolution

References:

Abramowicz M. A., Kluzniak W., 2001, A Precise Determination Of Black Hole Angular Momentum In GRO J1655-40, http://au.arxiv.org/abs/astro-ph/0105077

Abramowicz M. A., Kluzniak W., Lasota J. P., 2002, No Observational Proof Of The Black-Hole Event-Horizon, http://au.arxiv.org/abs/astro-ph/0207270

Audley D., 1998, Mass Transfer, http://lheawww.gsfc.nasa.gov/users/audley/diss/node8.html

Boudoul G., Barrau A., 2002, Some Aspects Of Primordial Black Hole Physics, http://au.arxiv.org/abs/astro-ph/0212225

Bradt H., Canizares C., Chakrabarty D., Clark G., Lewin W., Rappaport S., 2001, Astrophysics: X-ray Astronomy, http://web.mit.edu/physics/research/areasofresearch/astrophysics/x-ray_astronomy.html

Britt R. R., 2002, The Great Escape, http://www.space.com/scienceastronomy/astronomy/blackhole_light_020626.html

Britt R. R., 2002, Thick Skinned Gravastars Vie To Replace Black Holes – In Theory, http://www.space.com/scienceastronomy/astronomy/gravastars_020423.html

Britt R. R., 2003, The New History Of Black Holes, http://www.space.com/scienceastronomy/blackhole_history_030128-1.html

Bunn T., 1995, Black Holes FAQ, http://cosmology.berkeley.edu/Education/BHfaq.html

Darling D, 2003, The Encyclopaedia Of Astrobiology, Space And Flight, http://www.daviddarling.info/encyclopedia/C/ChanLimit.html

Darling D, 2003, The Encyclopaedia Of Astrobiology, Space And Flight, http://www.daviddarling.info/encyclopedia/C/ChanLimit.html

Delehunty M., 2004, Space Science Section – Dark Matter, http://www.astronomytoday.com/cosmology/darkmatter.html

Falcke H., 2004, The Black Hole In The Galactic Centre, http://www.mpifr-bonn.mpg.de/staff/hfalcke

Farlex Inc., 2004, Microquasars, http://encyclopedia.thefreedictionary.com/Microquasar

Fazekas A. S., 2004, Mounting Evidence For Middleweight Black Holes, http://www.astronomy.com/Content/Dynamic/Articles/000/000/001/265locve.asp

Freedman R. A., Kaufmann W. J., 2002, Universe

Fryer C. L., 1999, Mass Limits For Black Hole Formation, http://arxiv.org/abs/astro-ph/9902315

Ghez A. M., Salim S., Hornstein S. D., Tanner A., Morris M., Becklin E. E., Duchene G., 2003, Stellar Orbits Around The Galactic Center Black Hole, http://au.arxiv.org/abs/astro-ph/0306130

Giddings S. B., 2001, Black Hole Production In TeV-scale Gravity, And The Future Of High Energy Physics, http://www.arxiv.org/abs/hep-ph/0110127

Grenier I. A., Laurent P., 2001, X-ray And Gamma-ray Astronomy, http://www.europhysicsnews.com/full/12/article6/article6.html

Goebel G. et. al., 2004, Radio Astronomy, http://kosmoi.com/Science/Astronomy/Radio/

Gondek-Rosinska D., Kluzniak W., Stergioulas N., 2002, An Unusually Low Mass Of Some “Neutron” Stars?, http://arxiv.org/pdf/astro-ph/0206470

Graham J. R., 2003, Disk Luminosity And Accretion Rates, http://astron.berkeley.edu/~jrg/ay202/node116.html

Gundlach C., 1999, Black Hole Charge And Angular Momentum, http://relativity.livingreviews.org/Articles/lrr-1999-4/node19.html

Hamilton A., 1998, Hawking Radiation, http://casa.colorado.edu/~ajsh/hawk.html

Hamilton A., 1999, More About The Schwarzschild Radius, http://casa.colorado.edu/~ajsh/schwp.html

Han C., 1997, Correction For Blending Problem In Gravitational Microlensing Events, http://arxiv.org/abs/astro-ph/9704212

Hughes A., 1999, The Strangest Remnant Of Them All (Swinburne University Of Technology – Swinburne Astronomy Online HET603)

Hughes A., 1999, Black Holes (Swinburne University Of Technology – Swinburne Astronomy Online HET603)

Hughes S. A., Holz D. E., 2003, Cosmology With Coalescing Massive Black Holes, http://www.iop.org/EJ/abstract/0264-9381/20/10/308

Hyperphysics, 2004, Neutron Degeneracy, http://hyperphysics.phy-astr.gsu.edu/hbase/hframe.html

Kaku M., 1998, Black Holes, Worm Holes And The 10th Dimension, http://home.flash.net/~csmith0/black.htm

Kormendy J., Shields G., 2000, Monsters In Galactic Nuclei, http://chandra.as.utexas.edu/~kormendy/stardate.html


Lochner J., 2003, More On Hawking Radiation, http://imagine.gsfc.nasa.gov/docs/ask_astro/answers/011125b.html

Lochner J., 2004, Active Galaxies And Quasars, http://imagine.gsfc.nasa.gov/docs/science/know_l1/active_galaxies.html

Martin D., 1996, Dark Matter Investigation, http://aci.mta.ca/TheUmbrella/Physics/P3401/Investigations/MassGalaxyDM.html

Mazur P. O., Mottola E., 2002, Gravitational Condensate Stars: An Alternative To Black Holes, http://au.arxiv.org/abs/gr-qc/0109035

Mendez J., 2003, ING Scientific Highlights In 1992, http://www.ing.iac.es/PR/SH/SH92/high_92.html

Miller, Shahbaz, Nolan, 1998, Are Q-Stars A Serious Threat For Stellar-Mass Black Hole Candidates?, http://www.blackwell-synergy.com/links/doi/10.1046/j.1365-8711.1998.01384.x/abs

Mirabel I. F., 2002, Microquasars As Sources Of High Energy Phenomena, http://nedwww.ipac.caltech.edu/level5/Sept02/Mirabel/Mirabel1.html

Narayan R., 2002, Evidence For The Black Hole Event Horizon, http://www.blackwell-synergy.com/links/doi/10.1046/j.1468-4004.2003.44622.x/full

Novikov I., 1990, Black Holes and the Universe Phillips T., 2000, Black Holes On The Loose, http://www.southpole.com/headlines/y2000/ast14jan_1.htm

Rabinowitz M., 1999, Little Black Holes, Dark Matter And Ball Lightning, http://au.arxiv.org/abs/astro-ph/0212251

Rankin S., 1995, Black Holes And Quantum Gravity, http://www.damtp.cam.ac.uk/user/gr/public/bh_hawk.html

Reynolds C., 1997, Evidence For the Black Hole Model, http://www.astro.umd.edu/~chris/thesis/node9.html

Reynolds S., Nowak M. A., 2003, Fluorescent Iron Lines As A Probe of Astrophysical Black Hole Systems, http://www.astro.umd.edu/~chris/publications/html_papers/ironlines_plain/ironlines_pl ain.html

Russell S., Halls B., 1999, Missing Matter (Swinburne University Of Technology – Swinburne Astronomy Online HET603)

Schombert J., 2002, Theory Of Everything, http://zebu.uoregon.edu/~js/21st_century_science/lectures/lec17.html

Seidel E., 1995, The Relativistic Universe, http://archive.ncsa.uiuc.edu/Cyberia/NumRel/RelUniverse1.html

Sekmen S., 2003, Search For Higgs Boson In The Extra-Dimensional Black Hole Decays At LHC, http://www.physics.metu.edu.tr/he_seminars/files/1

Silber k., 1999, Weighting Black Holes The Easy Way, http://www.space.com/scienceastronomy/astronomy/black_holes_measure.html

SDSS (Sloan Digital Sky Survey), 2002, The Power Source Of Quasars, http://skyserver.sdss.org/dr1/en/proj/advanced/quasars/power.asp

Smarr L.., 1995, The Einstein Field Equations, http://archive.ncsa.uiuc.edu/Cyberia/NumRel/EinsteinEquations.html

Smith G., 1999, Dark Matter In The Universe, http://cassfos02.ucsd.edu/public/tutorial/DM.html

Thinkquest, 1999, Conceiving Black Holes, http://library.thinkquest.org/25715/discovery/conceiving.htm

Thinkquest, 1999, Formation Of A Stellar Black Holes, http://library.thinkquest.org/25715/formation/stellar.htm#chandrasekhar

Thinkquest, 2000, Hawking Radiation, http://library.thinkquest.org/C007571/english/advance/english.htm

Thorne K. S., 1994, Black Holes & Time Warps

Thomas S., Giddings S. B., 2002, High Energy Colliders As Black Hole Factories: The End Of Short Distance Physics, http://www.arxiv.org/abs/hep-ph/0106219

Tucker W., 2000, Chandra Discovers X-Ray Source At The Centre Of Our Galaxy, http://chandra.harvard.edu/press/00_releases/press_011400gc.html

Visser M., Wiltshire D. L., 2004, Stable Gravastars – An Alternative To Black Holes?, http://www.iop.org/EJ/abstract/0264-9381/21/4/027

Watson M., 2001, Black Hole Observations, http://www.pas.rochester.edu/~dmw/ast102/Lectures/Lect_16p.pdf

Watzke M., 2003, “Iron Clad” Evidence For Spinning Black Hole, http://chandra.harvard.edu/press/03_releases/press_091703.html

Weinstock M., 2000, Scientists Pinpoint Milky Way Galaxy’s Black Hole,1 http://www.space.com/scienceastronomy/astronomy/our_black_hole_000920.html

Weiss M., 2004, Quasars And Active Galaxies, http://chandra.harvard.edu/xray_sources/quasars.html

Weisstein E. W., 2004, Black Hole, http://scienceworld.wolfram.com/physics/BlackHole.html

Weisstein E. W., 2004, Singularity Theorem, http://scienceworld.wolfram.com/physics/SingularityTheorem.html

Weisstein E. W., 2004, Price’s Theorem, http://scienceworld.wolfram.com/physics/PricesTheorem.html

Back to Top | Back to High Mass Stellar Evolution

Image Credits:

Figure 2: NCSA – University of Illinois

Figure 3: NCSA – University of Illinois

Figure 4: NCSA – University of Illinois

Figure 5: NCSA – University of Illinois

Figure 6: NASA – Hubble Space Telescope Website

Figure 7: Haynes R. -NASA/CXC/SAO

Figure 8: NASA – Hubble Space Telescope Website

Figure 9: Mirabel I. F.

Figure 10: NASA/CXC/SAO

Figure 11: Sekmen S.

Back to Top | Back to High Mass Stellar Evolution


You can get score highest marks in 70-432 ebook using exam 70-452 and 70-576 pdf which is prepared by top certified professionals, exam 70-271 & 70-659 vce; both are marvelous in their nature.



Search | Site Map | Buy Stuff - Store | Appendix
©2004 - 2013 Astronomy Online. All rights reserved. Contact Us. Legal. Creative Commons License
The works within is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License.
